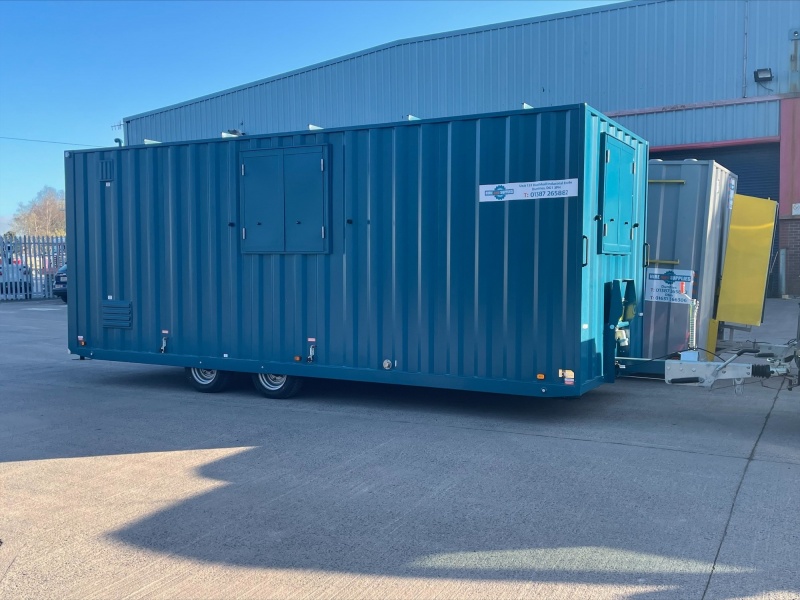

Towable Welfare Cabin – 13 Man 20ft

Easy to operate
Meeting all HSE on-site welfare standards, this cabin is a dream to operate. The twin axle build is easy to transport and a 4-ram hydraulic deployment system means it is simple and fast to deploy. Power is provided by an integrated silenced diesel generator which supplies a choice of Eco electrical specifications – Eco Plus, Eco Hybrid and the fuel-saving, low-emission patent-pending Eco Ultimate. Solar hybrid options available.

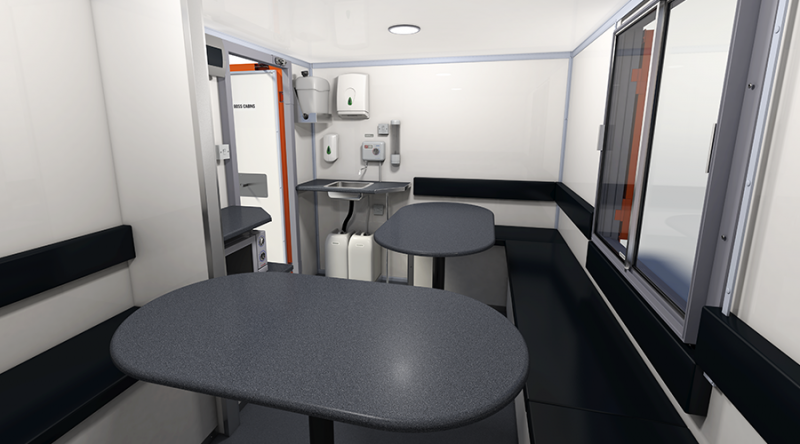

Canteen
A comfortable ergonomically-designed space with easy to access bench seating for up to 12 people around two round-cornered tables. Generous-sized dedicated under-seat storage. Charge appliances from the battery with 12V USB sockets. 12v LED lighting, 230V 3-pin power points. option of catering grade stainless steel worktops, microwave, kettle, instant hot wash facilities, towel and soap dispensers, window with security shutter.

Office
A separate dedicated office with desk space for one person, 3-pin sockets and USB charging point.

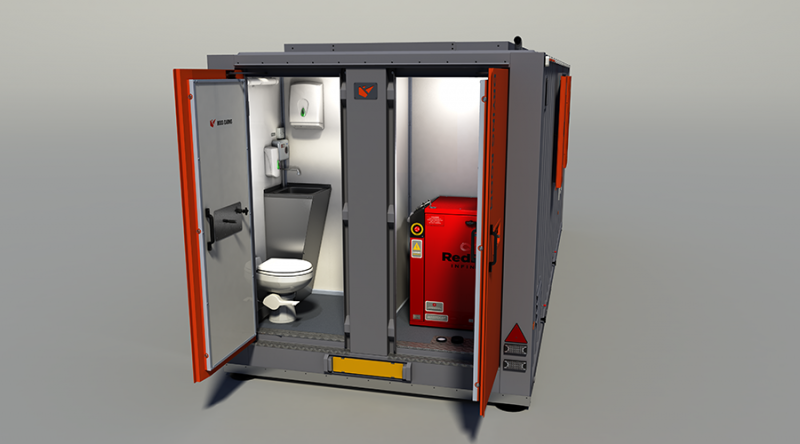

Toilets
Spacious toilet cubicle accessed externally with recirculating chemical or fresh water micro flush toilet, forearm sinks with instant hot water, high-security skylights and PIR-sensor LED lighting.

Generator / drying room
Store coats or hang wet clothes to dry in the heated generator room.

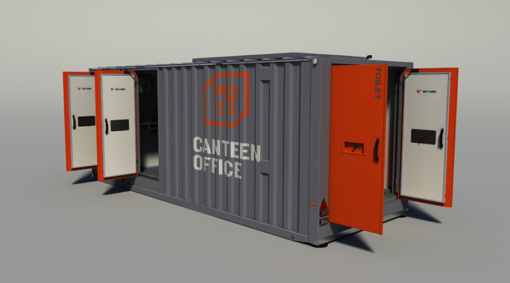

Canteen Office 20 Features

General

• Meets all HSE on-site welfare standards
• Magnetic door stays
• Anti-vandal doors with 3-bolt locking system and anti-prise strip
• Keyholes positioned to prevent lock chiselling
• High-security windows with locking steel shutters and toughened glass panes
• Electric hydraulic deployment system with 4 rams – deploys in under 3 minutes
• ‘Chip Guard’ coating prior to painting
• 2-pac paint finish in choice of RAL colours
• Ram guards supplied to allow safe working practices in the field
• Gold Standard Certification ensures all electrics comply with current legislation BS 7671 18th Edition
• Anti-vandal tow hitch cover with anti-prise bear-claw lock
• Choice of ball hitch or pin & eye tow hitch
• Twin axle design – strong and easy to transport
• Detachable wheel arch for easy wheel change
• Low-level lifting eyes avoid ‘Working at Height’ issues
• Triangulated stainless steel chain guard protects cabin from damage from lifting chains/straps
• External socket so unit can be powered by external electricity supply
• Energy efficient 12V LED lighting powered by battery
• Brilliant white GRP walls with easy to maintain wipe-down finish
• Hard wearing, easy to clean Polyflor vinyl floor covering
• All mobile cabins have VCA Type Approval under Directive 2007/46/EC

Toilet

• Separate toilet cubicle with external door
• Recirculating chemical toilet
• Impact resistant polycarbonate fixed-pane skylights
• Emergency external lock release mechanism
• Hot water hand wash and forearm sink
• Soap and hand towel dispenser
• Wall mirror
• 12v PIR-sensor controlled LED lighting
• Self-closing doors

Canteen

• Comfortable bench seating with back rests for up to 12 people
• Dedicated under seat storage
• 12V USB charging points
• 230V 3-pin power sockets
• Microwave
• Kettle
• Instant hot wash with stainless steel forearm sink
• Soap and towel dispenser
• Two rounded-corner tables to allow maximum manoeuvrability inside the cabin
• Clean and waste water containers with 25ltr capacity
• Drinking water container with 20ltr capacity
• Drinking cup dispenser
• Laminate worktops in kitchen area
• Internal power isolator switch for ease of use and to prevent unplanned generator start, deep battery discharge and theft
• Generator control panel inside cabin (not Eco Ultimate spec as generator is controlled automatically by ILMS)
• Low level plinth heater
• CO alarm
• Consumer unit with RCD and MCB protection
• Whiteboard with cork pinboard section

Office

• Desk Space for one person
• Office chair supplied
• Whiteboard with cork pinboard section
• CO monitor alarm
• 12V USB charging points
• 230v 3-pin plug sockets
• Wall-mounted fan heater
• Coat hooks (colour options available)

Generator / drying room

• Generator room also can be used to dry clothing
• Red Box generator with 1000 hour service intervals – 4 x longer than industry standard
• Wall mounted fan heater
• Coat hooks
• 12v PIR-sensor controlled LED lighting

Tech Specification:
